Direct High Flow K series Solenoid Valve
3 Way Direct Acting Balanced Poppet Solenoid Valve

DIRECT HIGH FLOW Solenoid Valve

3 Way Direct Acting Balanced. Poppet Solenoid Valve.

Scan QR code to join this website!QR_DIRECT_HIGH_FLOW_Solenoid_Valve

Features

3 Way Direct Acting Balanced Poppet Solenoid Valve
    Ex d, EExd, Exd, Ex m, Exm, EExm, EExia, EEx ia, Exia, Flame Proof, General Purpose, Explosion Proof, Water Proof, High Flow, Direct Acting, Balanced Poppet, Stainless Steel, Solenoid Valve FEATURES :
  • 3 Way Direct Acting Balanced Poppet Solenoid Valve : Integral terminal box with coil housing.
  • 3 Way Direct Acting Balanced Poppet Solenoid Valve : Valve do not require minimum operation pressure.
  • 3 Way Direct Acting Balanced Poppet Solenoid Valve : Normally open / Normally close in one unit design.
  • 3 Way Direct Acting Balanced Poppet Solenoid Valve : Valve operation is not affected by mounting position.
  • 3 Way Direct Acting Balanced Poppet Solenoid Valve : High flow.
  • 3 Way Direct Acting Balanced Poppet Solenoid Valve : 316 stainless steel body for highly corrosive atmospheres.
  • 3 Way Direct Acting Balanced Poppet Solenoid Valve : Low power consumption.
  • 3 Way Direct Acting Balanced Poppet Solenoid Valve : Convenient fixing holes.
  • 3 Way Direct Acting Balanced Poppet Solenoid Valve : Wide range of voltages available.
  • 3 Way Direct Acting Balanced Poppet Solenoid Valve : Manual reset. Function available.
    Ex d, EExd, Exd, Ex m, Exm, EExm, EExia, EEx ia, Exia, Flame Proof, General Purpose, Explosion Proof, Water Proof, High Flow, Direct Acting, Balanced Poppet, Stainless Steel, Solenoid Valve INTRODUCTION :
  • 3 port 2 position direct acting, balanced poppet type, normally close and normally open in one solenoid valve, for operation of single acting pneumatic devices. High flow and low power consumption with no minimum operating pressure required.
    Ex d, EExd, Exd, Ex m, Exm, EExm, EExia, EEx ia, Exia, Flame Proof, General Purpose, Explosion Proof, Water Proof, High Flow, Direct Acting, Balanced Poppet, Stainless Steel, Solenoid Valve DIMENSION :

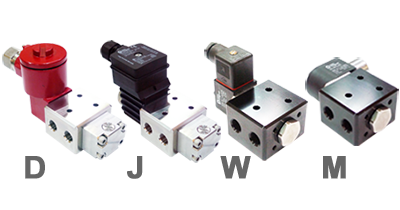

  • SOLENOID COIL UNIT D Version : RGS Flame Proof Coil Unit
  • SOLENOID COIL UNIT D Version : Ex d IIC T4/T6
  • SOLENOID COIL UNIT D Examination Certificate : BSA EX97D1329
  • SOLENOID COIL UNIT D Hazardous Location : Ex d IIC T4/T6
  • SOLENOID COIL UNIT D Hazardous Location : Ex II 2 GD
    Ex d, EExd, Exd, Ex m, Exm, EExm, EExia, EEx ia, Exia, Flame Proof, General Purpose, Explosion Proof, Water Proof, High Flow, Direct Acting, Balanced Poppet, Stainless Steel, Solenoid Valve VALVE :
  • 3 Way High Flow Direct Acting Valve with Ex d Flame Proof Stainless Steel Enclosure Valve Body : Stainless Steel 316
  • 3 Way High Flow Direct Acting Valve with Ex d Flame Proof Stainless Steel Enclosure Valve Seals : H-NBR
  • 3 Way High Flow Direct Acting Valve with Ex d Flame Proof Stainless Steel Enclosure Valve Spring : Stainless Steel 302
  • 3 Way High Flow Direct Acting Valve with Ex d Flame Proof Stainless Steel Enclosure Valve Trim : Stainless Steel 316
  • 3 Way High Flow Direct Acting Valve with Ex d Flame Proof Stainless Steel Enclosure Valve Port Connection Size : 1/4” - 3/8” NPT
  • 3 Way High Flow Direct Acting Valve with Ex d Flame Proof Stainless Steel Enclosure Valve Working Pressure Internal Pilot Version : 0 to 10 bar
  • 3 Way High Flow Direct Acting Valve with Ex d Flame Proof Stainless Steel Enclosure Valve Cv Factor : 0.6
  • 3 Way High Flow Direct Acting Valve with Ex d Flame Proof Stainless Steel Enclosure Valve Maximum Ambient Temperature : +65°C
  • 3 Way High Flow Direct Acting Valve with Ex d Flame Proof Stainless Steel Enclosure Valve Minimum Working Temperature : -15°C
    Ex d, EExd, Exd, Ex m, Exm, EExm, EExia, EEx ia, Exia, Flame Proof, General Purpose, Explosion Proof, Water Proof, High Flow, Direct Acting, Balanced Poppet, Stainless Steel, Solenoid Valve COIL UNIT D :
  • 3 Way High Flow Direct Acting Valve with Ex d Flame Proof Stainless Steel Enclosure COIL UNIT D Moulding Material : Stainless Steel Epoxy Powerder Coated
  • 3 Way High Flow Direct Acting Valve with Ex d Flame Proof Stainless Steel Enclosure COIL UNIT D Armature : Magnetic Solenoid Quality Stainless Steel
  • 3 Way High Flow Direct Acting Valve with Ex d Flame Proof Stainless Steel Enclosure COIL UNIT D Springs : Stainless Steel
  • 3 Way High Flow Direct Acting Valve with Ex d Flame Proof Stainless Steel Enclosure COIL UNIT D Seals and Seat : FKM
  • 3 Way High Flow Direct Acting Valve with Ex d Flame Proof Stainless Steel Enclosure COIL UNIT D DC Solenoid Coil Voltage Standard : 12, 24, 48, 110
  • 3 Way High Flow Direct Acting Valve with Ex d Flame Proof Stainless Steel Enclosure COIL UNIT D DC Solenoid Coil Coil Rating : Class H
  • 3 Way High Flow Direct Acting Valve with Ex d Flame Proof Stainless Steel Enclosure COIL UNIT D DC Solenoid Coil Voltage Standard : ±10%
  • 3 Way High Flow Direct Acting Valve with Ex d Flame Proof Stainless Steel Enclosure COIL UNIT D DC Solenoid Coil Ambient Temperature : -10°C to +80°C
  • 3 Way High Flow Direct Acting Valve with Ex d Flame Proof Stainless Steel Enclosure COIL UNIT D DC Solenoid Coil Duty Cycle : 100%
  • 3 Way High Flow Direct Acting Valve with Ex d Flame Proof Stainless Steel Enclosure COIL UNIT D DC Solenoid Coil Degree of Protection : IP66
  • 3 Way High Flow Direct Acting Valve with Ex d Flame Proof Stainless Steel Enclosure COIL UNIT D DC Solenoid Coil Connection : Junction Box with M20 Entry
  • 3 Way High Flow Direct Acting Valve with Ex d Flame Proof Stainless Steel Enclosure COIL UNIT D DC Solenoid Coil Power Consumption : 3W (standard)
  • 3 Way High Flow Direct Acting Valve with Ex d Flame Proof Stainless Steel Enclosure COIL UNIT D AC Solenoid Coil Voltage Standard : 24, 48, 110, 220, 415 (50/60 Hz)
  • 3 Way High Flow Direct Acting Valve with Ex d Flame Proof Stainless Steel Enclosure COIL UNIT D AC Solenoid Coil Rating : Class H
  • 3 Way High Flow Direct Acting Valve with Ex d Flame Proof Stainless Steel Enclosure COIL UNIT D AC Solenoid Coil Voltage Tolerance : ±10%
  • 3 Way High Flow Direct Acting Valve with Ex d Flame Proof Stainless Steel Enclosure COIL UNIT D AC Solenoid Coil Ambient Temperature : -10°C to +55°C
  • 3 Way High Flow Direct Acting Valve with Ex d Flame Proof Stainless Steel Enclosure COIL UNIT D AC Solenoid Coil Duty Cycle : 100%
  • 3 Way High Flow Direct Acting Valve with Ex d Flame Proof Stainless Steel Enclosure COIL UNIT D AC Solenoid Coil Degree of Protection : IP66
  • 3 Way High Flow Direct Acting Valve with Ex d Flame Proof Stainless Steel Enclosure COIL UNIT D AC Solenoid Coil Connection : Junction Box with M20 Entry
  • 3 Way High Flow Direct Acting Valve with Ex d Flame Proof Stainless Steel Enclosure COIL UNIT D AC Solenoid Coil Power Consumption : Inrush 9.5VA, Holding 5VA
    Ex d, EExd, Exd, Ex m, Exm, EExm, EExia, EEx ia, Exia, Flame Proof, General Purpose, Explosion Proof, Water Proof, High Flow, Direct Acting, Balanced Poppet, Stainless Steel, Solenoid Valve DIMENSION :
  • SOLENOID COIL UNIT J Version : System 8 Ex CSA/FM
  • SOLENOID COIL UNIT J Version : Ex m II T4 + Division 1
  • SOLENOID COIL UNIT J Examination Certificate : PTB 10 ATEX
  • SOLENOID COIL UNIT J Examination Certificate : 6519 00 / 7137 IP
  • SOLENOID COIL UNIT J Hazardous Location : Ex II 2 GD
  • SOLENOID COIL UNIT J Hazardous Location : Ex e mb IIC T4 Gb
  • SOLENOID COIL UNIT J Hazardous Location : Ex e mb IIIC T130˚C Db IP67
    Ex d, EExd, Exd, Ex m, Exm, EExm, EExia, EEx ia, Exia, Flame Proof, General Purpose, Explosion Proof, Water Proof, High Flow, Direct Acting, Balanced Poppet, Stainless Steel, Solenoid Valve VALVE :
  • 3 Way High Flow Direct Acting Valve with Ex m Explosion Proof Coil Valve Body : Stainless Steel 316
  • 3 Way High Flow Direct Acting Valve with Ex m Explosion Proof Coil Valve Seals : H-NBR
  • 3 Way High Flow Direct Acting Valve with Ex m Explosion Proof Coil Valve Spring : Stainless Steel 302
  • 3 Way High Flow Direct Acting Valve with Ex m Explosion Proof Coil Valve Trim : Stainless Steel 316
  • 3 Way High Flow Direct Acting Valve with Ex m Explosion Proof Coil Valve Port Connection Size : 1/4” - 3/8” NPT
  • 3 Way High Flow Direct Acting Valve with Ex m Explosion Proof Coil Valve Working Pressure Internal Pilot Version : 0 to 10 bar
  • 3 Way High Flow Direct Acting Valve with Ex m Explosion Proof Coil Valve Cv Factor : 0.6
  • 3 Way High Flow Direct Acting Valve with Ex m Explosion Proof Coil Valve Maximum Ambient Temperature : +65°C
  • 3 Way High Flow Direct Acting Valve with Ex m Explosion Proof Coil Valve Minimum Working Temperature : -15°C
    Ex d, EExd, Exd, Ex m, Exm, EExm, EExia, EEx ia, Exia, Flame Proof, General Purpose, Explosion Proof, Water Proof, High Flow, Direct Acting, Balanced Poppet, Stainless Steel, Solenoid Valve Coil Unit J :
  • 3 Way High Flow Direct Acting Valve with Ex m Explosion Proof Coil Unit J Moulding Material : Thermoplastic
  • 3 Way High Flow Direct Acting Valve with Ex m Explosion Proof Coil Unit J Armature : Magnetic Solenoid Quality Stainless Steel
  • 3 Way High Flow Direct Acting Valve with Ex m Explosion Proof Coil Unit J Springs : Stainless Steel
  • 3 Way High Flow Direct Acting Valve with Ex m Explosion Proof Coil Unit J Seals and Seat : FPM
  • 3 Way High Flow Direct Acting Valve with Ex m Explosion Proof Coil Unit J DC Solenoid Coil Voltage Standard : 12, 24, 120
  • 3 Way High Flow Direct Acting Valve with Ex m Explosion Proof Coil Unit J DC Solenoid Coil Coil Rating : Class H
  • 3 Way High Flow Direct Acting Valve with Ex m Explosion Proof Coil Unit J DC Solenoid Coil Voltage Standard : ±10%
  • 3 Way High Flow Direct Acting Valve with Ex m Explosion Proof Coil Unit J DC Solenoid Coil Ambient Temperature : -40°C to +60°C
  • 3 Way High Flow Direct Acting Valve with Ex m Explosion Proof Coil Unit J DC Solenoid Coil Duty Cycle : 100%
  • 3 Way High Flow Direct Acting Valve with Ex m Explosion Proof Coil Unit J DC Solenoid Coil Degree of Protection : IP66
  • 3 Way High Flow Direct Acting Valve with Ex m Explosion Proof Coil Unit J DC Solenoid Coil Connection : Junction Box with M20 Entry
  • 3 Way High Flow Direct Acting Valve with Ex m Explosion Proof Coil Unit J DC Solenoid Coil Power Consumption : 11W (standard)
  • 3 Way High Flow Direct Acting Valve with Ex m Explosion Proof Coil Unit J AC Solenoid Coil Voltage Standard : 24, 48, 110, 220 (50/60 Hz)
  • 3 Way High Flow Direct Acting Valve with Ex m Explosion Proof Coil Unit J AC Solenoid Coil Rating : Class H
  • 3 Way High Flow Direct Acting Valve with Ex m Explosion Proof Coil Unit J AC Solenoid Coil Voltage Tolerance : ±10%
  • 3 Way High Flow Direct Acting Valve with Ex m Explosion Proof Coil Unit J AC Solenoid Coil Ambient Temperature : -40°C to +60°C
  • 3 Way High Flow Direct Acting Valve with Ex m Explosion Proof Coil Unit J AC Solenoid Coil Duty Cycle : 100%
  • 3 Way High Flow Direct Acting Valve with Ex m Explosion Proof Coil Unit J AC Solenoid Coil Degree of Protection : IP66
  • 3 Way High Flow Direct Acting Valve with Ex m Explosion Proof Coil Unit J AC Solenoid Coil Connection : Junction Box with M20 Entry
  • 3 Way High Flow Direct Acting Valve with Ex m Explosion Proof Coil Unit J AC Solenoid Coil Power Consumption : Pull in 10VA, Holding 5VA
    Ex d, EExd, Exd, Ex m, Exm, EExm, EExia, EEx ia, Exia, Flame Proof, General Purpose, Explosion Proof, Water Proof, High Flow, Direct Acting, Balanced Poppet, Stainless Steel, Solenoid Valve DIMENSION :
  • SOLENOID COIL UNIT M Version : System 8 Ex CSA/FM
  • SOLENOID COIL UNIT M Version : Ex m II T4 + Division 1
  • SOLENOID COIL UNIT M EC-Type Examination Certificate : CSA 202633
  • SOLENOID COIL UNIT M EC-Type Examination Certificate : FM 3006713
  • SOLENOID COIL UNIT M Hazardous Location : Ex m II T4
  • SOLENOID COIL UNIT M Hazardous Location : Division 1 - Class I, Group A, B, C and D
  • SOLENOID COIL UNIT M Hazardous Location : Division 1 - Class II, Group E, F and G
  • SOLENOID COIL UNIT M Hazardous Location : Division 1 - Class III
    Ex d, EExd, Exd, Ex m, Exm, EExm, EExia, EEx ia, Exia, Flame Proof, General Purpose, Explosion Proof, Water Proof, High Flow, Direct Acting, Balanced Poppet, Stainless Steel, Solenoid Valve VALVE :
  • 3 Way High Flow Direct Acting Valve with Ex m Flame Proof Stainless Steel Enclosure Valve Body : Stainless Steel 316
  • 3 Way High Flow Direct Acting Valve with Ex m Flame Proof Stainless Steel Enclosure Valve Seals : H-NBR
  • 3 Way High Flow Direct Acting Valve with Ex m Flame Proof Stainless Steel Enclosure Valve Spring : Stainless Steel 302
  • 3 Way High Flow Direct Acting Valve with Ex m Flame Proof Stainless Steel Enclosure Trim : Stainless Steel 316
  • 3 Way High Flow Direct Acting Valve with Ex m Flame Proof Stainless Steel Enclosure Port Connection Size : 1/4” - 3/8” NPT
  • 3 Way High Flow Direct Acting Valve with Ex m Flame Proof Stainless Steel Enclosure Working Pressure Internal Pilot Version : 0 to 10 bar
  • 3 Way High Flow Direct Acting Valve with Ex m Flame Proof Stainless Steel Enclosure Cv Factor : 0.6
  • 3 Way High Flow Direct Acting Valve with Ex m Flame Proof Stainless Steel Enclosure Maximum Ambient Temperature : +65°C
  • 3 Way High Flow Direct Acting Valve with Ex m Flame Proof Stainless Steel Enclosure Minimum Working Temperature : -15°C
    Ex d, EExd, Exd, Ex m, Exm, EExm, EExia, EEx ia, Exia, Flame Proof, General Purpose, Explosion Proof, Water Proof, High Flow, Direct Acting, Balanced Poppet, Stainless Steel, Solenoid Valve COIL UNIT M :
  • 3 Way High Flow Direct Acting Valve with Ex m Flame Proof Stainless Steel Enclosure COIL UNIT M Moulding Material : Thermoplastic
  • 3 Way High Flow Direct Acting Valve with Ex m Flame Proof Stainless Steel Enclosure COIL UNIT M Armature : Magnetic Solenoid Quality Stainless Steel
  • 3 Way High Flow Direct Acting Valve with Ex m Flame Proof Stainless Steel Enclosure COIL UNIT M Springs : Stainless Steel
  • 3 Way High Flow Direct Acting Valve with Ex m Flame Proof Stainless Steel Enclosure COIL UNIT M Seals and Seat : FPM
  • 3 Way High Flow Direct Acting Valve with Ex m Flame Proof Stainless Steel Enclosure COIL UNIT M DC Solenoid Coil Voltage Standard : 12, 24, 48, 120
  • 3 Way High Flow Direct Acting Valve with Ex m Flame Proof Stainless Steel Enclosure COIL UNIT M DC Solenoid Coil Coil Rating : Class H
  • 3 Way High Flow Direct Acting Valve with Ex m Flame Proof Stainless Steel Enclosure COIL UNIT M DC Solenoid Coil Voltage Standard : ±10%
  • 3 Way High Flow Direct Acting Valve with Ex m Flame Proof Stainless Steel Enclosure COIL UNIT M DC Solenoid Coil Ambient Temperature : -20°C to +60°C
  • 3 Way High Flow Direct Acting Valve with Ex m Flame Proof Stainless Steel Enclosure COIL UNIT M DC Solenoid Coil Duty Cycle : 100%
  • 3 Way High Flow Direct Acting Valve with Ex m Flame Proof Stainless Steel Enclosure COIL UNIT M DC Solenoid Coil Degree of Protection : IP65
  • 3 Way High Flow Direct Acting Valve with Ex m Flame Proof Stainless Steel Enclosure COIL UNIT M DC Solenoid Coil Connection : Flying Leads Thread 1/2-NPT
  • 3 Way High Flow Direct Acting Valve with Ex m Flame Proof Stainless Steel Enclosure COIL UNIT M DC Solenoid Coil Power Consumption : 4.6W (standard)
  • 3 Way High Flow Direct Acting Valve with Ex m Flame Proof Stainless Steel Enclosure COIL UNIT M AC Solenoid Coil Voltage Standard : 24, 110, 220 (50/60 Hz)
  • 3 Way High Flow Direct Acting Valve with Ex m Flame Proof Stainless Steel Enclosure COIL UNIT M AC Solenoid Coil Rating : Class H
  • 3 Way High Flow Direct Acting Valve with Ex m Flame Proof Stainless Steel Enclosure COIL UNIT M AC Solenoid Coil Voltage Tolerance : ±10%
  • 3 Way High Flow Direct Acting Valve with Ex m Flame Proof Stainless Steel Enclosure COIL UNIT M AC Solenoid Coil Ambient Temperature : -20°C to +60°C
  • 3 Way High Flow Direct Acting Valve with Ex m Flame Proof Stainless Steel Enclosure COIL UNIT M AC Solenoid Coil Duty Cycle : 100%
  • 3 Way High Flow Direct Acting Valve with Ex m Flame Proof Stainless Steel Enclosure COIL UNIT M AC Solenoid Coil Degree of Protection : IP65
  • 3 Way High Flow Direct Acting Valve with Ex m Flame Proof Stainless Steel Enclosure COIL UNIT M AC Solenoid Coil Connection : Flying Leads Thread 1/2-NPT
  • 3 Way High Flow Direct Acting Valve with Ex m Flame Proof Stainless Steel Enclosure COIL UNIT M AC Solenoid Coil Power Consumption : Pull in - 7.5VA, Holding - 5VA
    Ex d, EExd, Exd, Ex m, Exm, EExm, EExia, EEx ia, Exia, Flame Proof, General Purpose, Explosion Proof, Water Proof, High Flow, Direct Acting, Balanced Poppet, Stainless Steel, Solenoid Valve DIMENSION :
  • SOLENOID COIL UNIT W Version : NASS System 8
  • SOLENOID COIL UNIT W Version : General Purpose
  • SOLENOID COIL UNIT W Version : EN 1759-803-A
  • SOLENOID COIL UNIT W Version : ISO 4400
    Ex d, EExd, Exd, Ex m, Exm, EExm, EExia, EEx ia, Exia, Flame Proof, General Purpose, Explosion Proof, Water Proof, High Flow, Direct Acting, Balanced Poppet, Stainless Steel, Solenoid Valve VALVE :
  • 3 Way High Flow Direct Acting Valve with General Purpose / Water Proof Coil Unit Valve Body : Stainless Steel 316
  • 3 Way High Flow Direct Acting Valve with General Purpose / Water Proof Coil Unit Valve Seals : H-NBR
  • 3 Way High Flow Direct Acting Valve with General Purpose / Water Proof Coil Unit Valve Spring : Stainless Steel 302
  • 3 Way High Flow Direct Acting Valve with General Purpose / Water Proof Coil Unit Valve Trim : Stainless Steel 316
  • 3 Way High Flow Direct Acting Valve with General Purpose / Water Proof Coil Unit Valve Port Connection Size : 1/4” - 3/8” NPT
  • 3 Way High Flow Direct Acting Valve with General Purpose / Water Proof Coil Unit Valve Working Pressure Internal Pilot Version : 0 to 10 bar
  • 3 Way High Flow Direct Acting Valve with General Purpose / Water Proof Coil Unit Valve Cv Factor : 0.6
  • 3 Way High Flow Direct Acting Valve with General Purpose / Water Proof Coil Unit Valve Maximum Ambient Temperature : +65°C
  • 3 Way High Flow Direct Acting Valve with General Purpose / Water Proof Coil Unit Valve Minimum Working Temperature : -15°C
    Ex d, EExd, Exd, Ex m, Exm, EExm, EExia, EEx ia, Exia, Flame Proof, General Purpose, Explosion Proof, Water Proof, High Flow, Direct Acting, Balanced Poppet, Stainless Steel, Solenoid Valve Coil Unit W :
  • 3 Way High Flow Direct Acting Valve with General Purpose / Water Proof Coil Unit W Moulding Material : Thermoplastic
  • 3 Way High Flow Direct Acting Valve with General Purpose / Water Proof Coil Unit W Armature : Magnetic Solenoid Quality Stainless Steel
  • 3 Way High Flow Direct Acting Valve with General Purpose / Water Proof Coil Unit W Springs : Stainless Steel
  • 3 Way High Flow Direct Acting Valve with General Purpose / Water Proof Coil Unit W Seals and Seat : FPM
  • 3 Way High Flow Direct Acting Valve with General Purpose / Water Proof Coil Unit W DC Solenoid Coil Voltage Standard : 24
  • 3 Way High Flow Direct Acting Valve with General Purpose / Water Proof Coil Unit W DC Solenoid Coil Coil Rating : Class H
  • 3 Way High Flow Direct Acting Valve with General Purpose / Water Proof Coil Unit W DC Solenoid Coil Voltage Standard : ±10%
  • 3 Way High Flow Direct Acting Valve with General Purpose / Water Proof Coil Unit W DC Solenoid Coil Ambient Temperature : -20°C to +50°C
  • 3 Way High Flow Direct Acting Valve with General Purpose / Water Proof Coil Unit W DC Solenoid Coil Duty Cycle : 100%
  • 3 Way High Flow Direct Acting Valve with General Purpose / Water Proof Coil Unit W DC Solenoid Coil Degree of Protection : IP65 / With IP67 Terminal Box
  • 3 Way High Flow Direct Acting Valve with General Purpose / Water Proof Coil Unit W DC Solenoid Coil Connection : Junction Box with M20 Entry
  • 3 Way High Flow Direct Acting Valve with General Purpose / Water Proof Coil Unit W DC Solenoid Coil Power Consumption : 4.5W (standard)
  • 3 Way High Flow Direct Acting Valve with General Purpose / Water Proof Coil Unit W AC Solenoid Coil Voltage Standard : 48, 110, 230 (50/60 Hz)
  • 3 Way High Flow Direct Acting Valve with General Purpose / Water Proof Coil Unit W AC Solenoid Coil Rating : Class H
  • 3 Way High Flow Direct Acting Valve with General Purpose / Water Proof Coil Unit W AC Solenoid Coil Voltage Tolerance : ±10%
  • 3 Way High Flow Direct Acting Valve with General Purpose / Water Proof Coil Unit W AC Solenoid Coil Ambient Temperature : -20°C to +50°C
  • 3 Way High Flow Direct Acting Valve with General Purpose / Water Proof Coil Unit W AC Solenoid Coil Duty Cycle : 100%
  • 3 Way High Flow Direct Acting Valve with General Purpose / Water Proof Coil Unit W AC Solenoid Coil Degree of Protection : IP65 / With IP67 Terminal Box
  • 3 Way High Flow Direct Acting Valve with General Purpose / Water Proof Coil Unit W AC Solenoid Coil Connection : Junction Box with M20 Entry
  • 3 Way High Flow Direct Acting Valve with General Purpose / Water Proof Coil Unit W AC Solenoid Coil Power Consumption : 7.6VA (50Hz) / 5.3VA (60Hz)
